FLUKE TEST PUMP 700PTP-1

The Fluke 700PTP-1 is a handheld pressure pump designed to generate either vacuum to -13 psi/-0.9 bar or pressure to 600 psi/40 bar

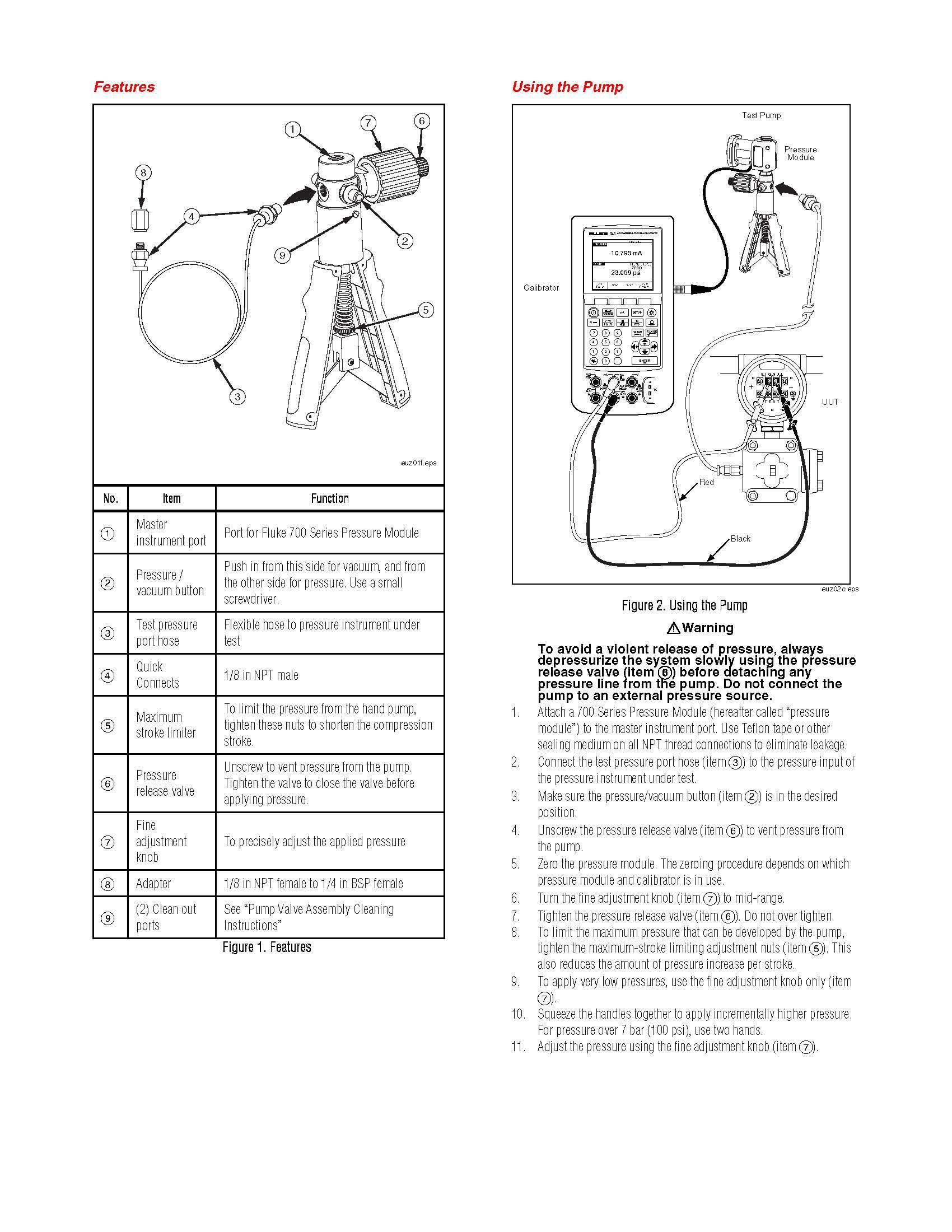

The Fluke 700PTP-1 has two pressure ports:

• ¼” NPT female parallel thread fitting for the reference gauge or pressure module

• ¼” NPT female parallel thread fitting for the unit under test

• Pressure to 40 bar (600 psi)

• Vacuum to -0.96 bar (-13.9 psi)

• Wetted materials: aluminum, silicon, neoprene, stainless steel, Buna-N

• Weight: 1.03 lb (467 g)

• Dimensions: length 8.7 in (220 mm), width 4.8 in (122 mm), depth 3.5 in (89 mm)
