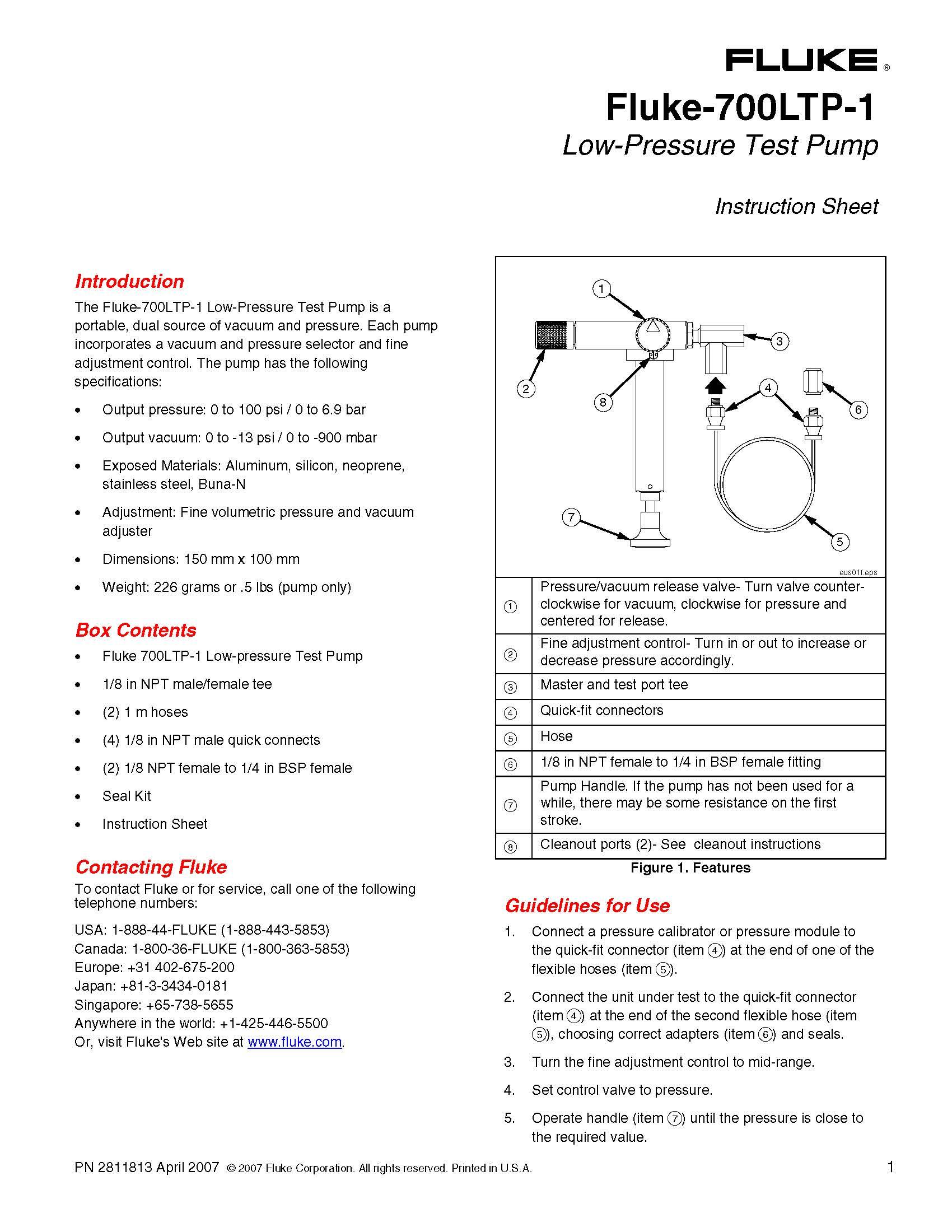

FLUKE TEST PUMP 700LTP-1

The Fluke 700LTP-1 is a hand operated pressure pump designed to generate either

vacuum to -12 psi/-.85 bar or pressures to 100 psi/6.9 bar. The Fluke 700LTP-1 has

two pressure ports with push fit connectors.

These push fit connectors, one for the reference port for connection to a Fluke 700

Series Pressure Module and one to connect to a unit under test, connect to the supplied test hoses.

• Output pressure: 0 to 100 psi / 0 to 6.9 bar

• Output vacuum: 0 to -13 psi / 0 to -900 mbar

• Exposed Materials: Aluminum, silicon, neoprene, stainless steel, Buna-N

• Adjustment: Fine volumetric pressure and vacuum adjuster

• Dimensions: 150 mm x 100 mm

• Weight: 226 grams or .5 lbs (pump only)
