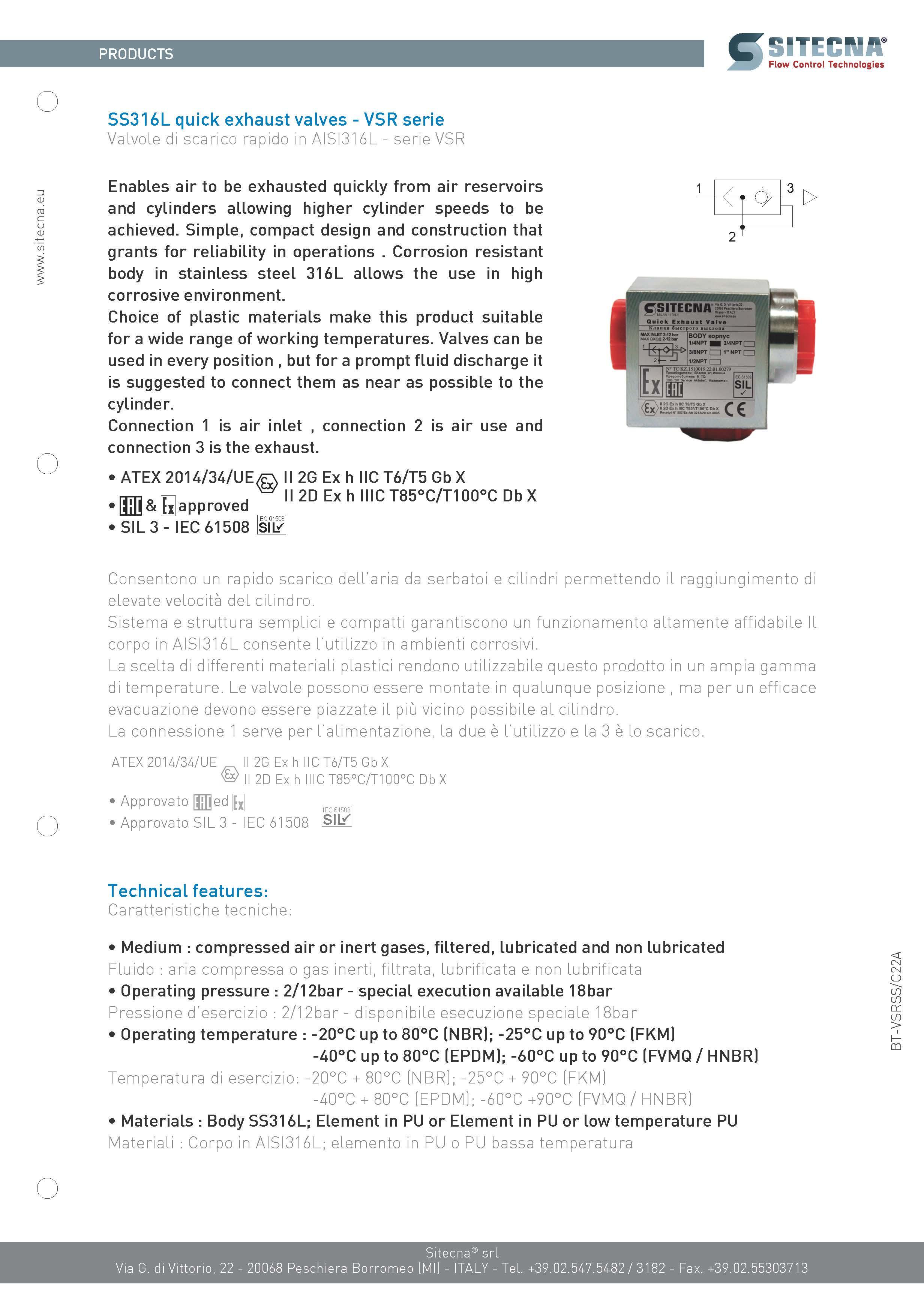

SITECNA QUICK EXHAUST VALVE VSR04NSS (HN)

Enables air to be exhausted quickly from air reservoirs 3 and cylinders allowing higher cylinder speeds to be achieved. Simple, compact design and construction that

grants for reliability in operations. Corrosion resistant body in stainless steel 316L allows the use in high corrosive environment.

Choice of plastic materials make this product suitable for a wide range of working temperatures. Valves can be used in every position, but for a prompt fluid discharge it

is suggested to connect them as near as possible to the cylinder.

Connection 1 is air inlet , connection 2 is air use and connection 3 is the exhaust.

Technical features:

• Medium : compressed air or inert gases, filtered, lubricated and non lubricated

• Operating pressure : 2/12bar - special execution available 18bar

• Operating temperature : -20°C up to 80°C (NBR); -25°C up to 90°C (FKM)

-40°C up to 80°C (EPDM); -60°C up to 90°C (FVMQ / HNBR)

• Materials : Body SS316L; Element in PU or Element in PU or low temperature PU
