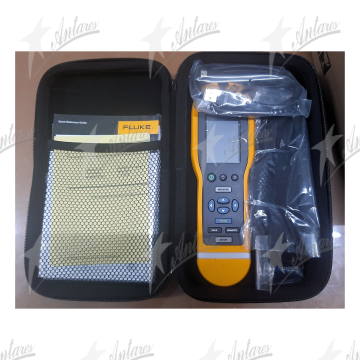

FLUKE VIBRATION METER 805

• Innovative sensor design minimizes measurement variations caused by device angle or contact pressure

• Consistent data quality at both low and high frequency ranges

• Four-level severity scale assesses urgency of problems for overall vibration and bearing condition

• Exportable data via USB

• Trending in Microsoft® Excel using built-in templates

• Overall vibration measurement (10 Hz to 1,000 Hz) for acceleration, velocity and displacement units of measurement for a wide variety of machines

• Crest Factor+ technology provides reliable bearing assessment using direct sensor tip measurements between 4,000 Hz and 20,000 Hz

• Colored lighting system (green, red) and on-screen comments indicate how much pressure needs to be applied to take measurements

• Temperature measurement with Spot IR Sensor increases diagnostic capabilities

• On-board memory holds and saves up to 3,500 measurements

• Audio output for listening to bearing tones directly

• External accelerometer support for hard to reach locations

• Flashlight for viewing measurement locations in dark areas

• Large screen with high resolution for easy navigation and viewing

Application :

Chiller, Fans, Cooling Tower Drives, Centrifugal Pumps, Air Compressors, Blower, Gearboxes, Displacement Pumps, Machine Tools
