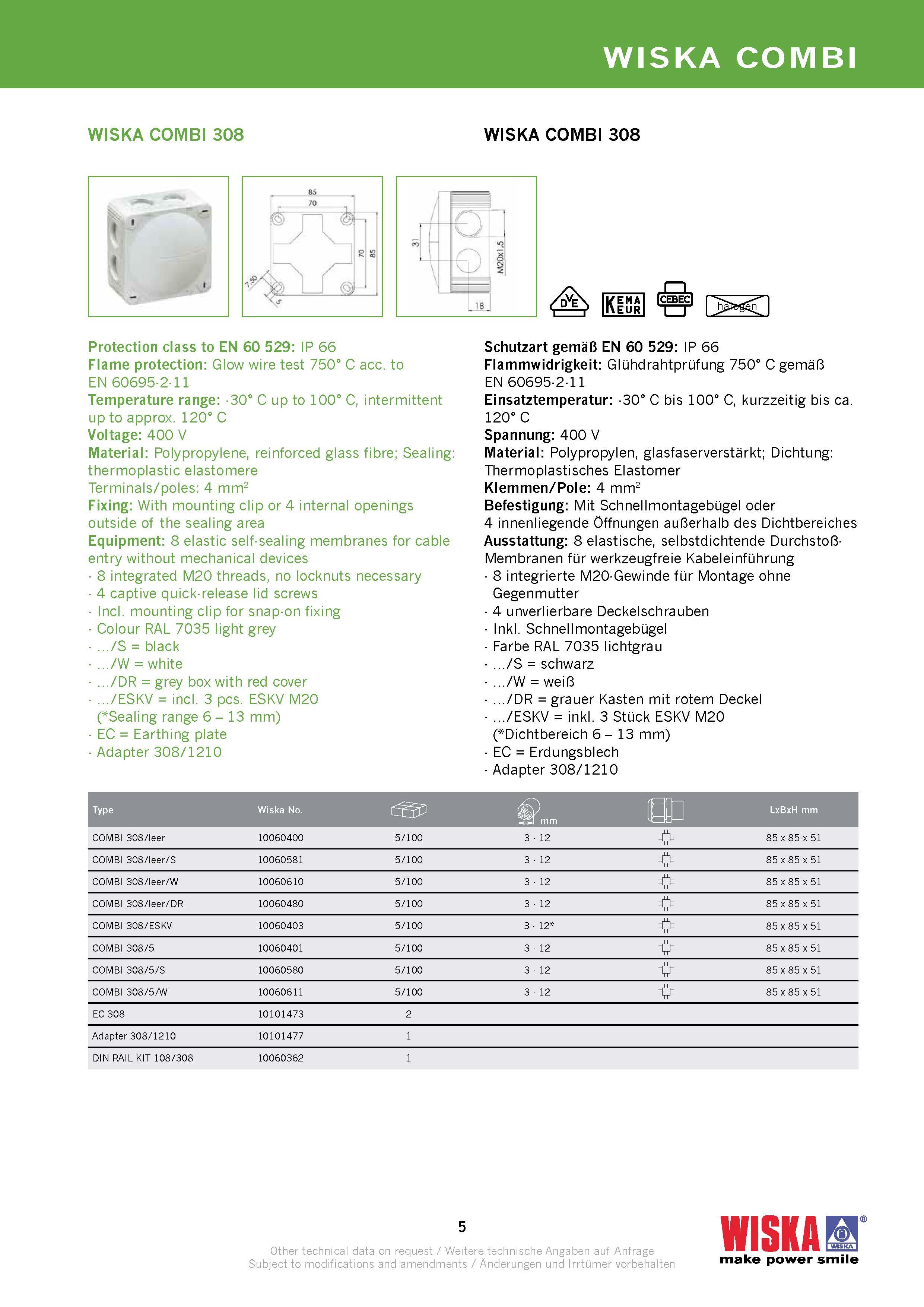

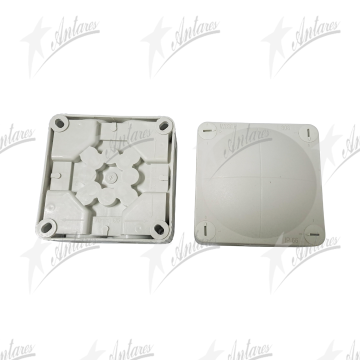

WISKA JUNCTION BOX COMBI 308 85 X 85 X 51

Protection class to EN 60 529: IP 66

Flame protection: Glow wire test 750 C acc. to EN 60695-2-11

Temperatures during installation: -5°C to 60°C

Temperature range of material: -30°C to 100°C, intermittent up to approx. 120°C

Voltage: 400 V

Material: Polypropylene, reinforced glass fibre; Sealing: thermoplastic elastomere

Terminals/poles: 4 mm²

Fixing: With mounting clip or 4 internal openings outside of the sealing area

Equipment: 8 elastic self-sealing membranes for cable entry without mechanical devices

- 8 integrated M 20 threads, no locknuts necessary

- 4 captive quick-release lid screws

- Incl. mounting clip for snap-on fixing

- Colour RAL 7035 light grey

- .../S = black

- .../W = white

- .../DR = grey box with red cover

- .../ESKV = incl. 3 pcs. ESKV M 20 (*Sealing range 6 - 13 mm)

Accessories:

- DIN RAIL KIT 108, 308: Rail TS 15 + Fixing material, WISKA-No. 10060362

- EC 308 Earthing plate: WISKA No. 10101473
