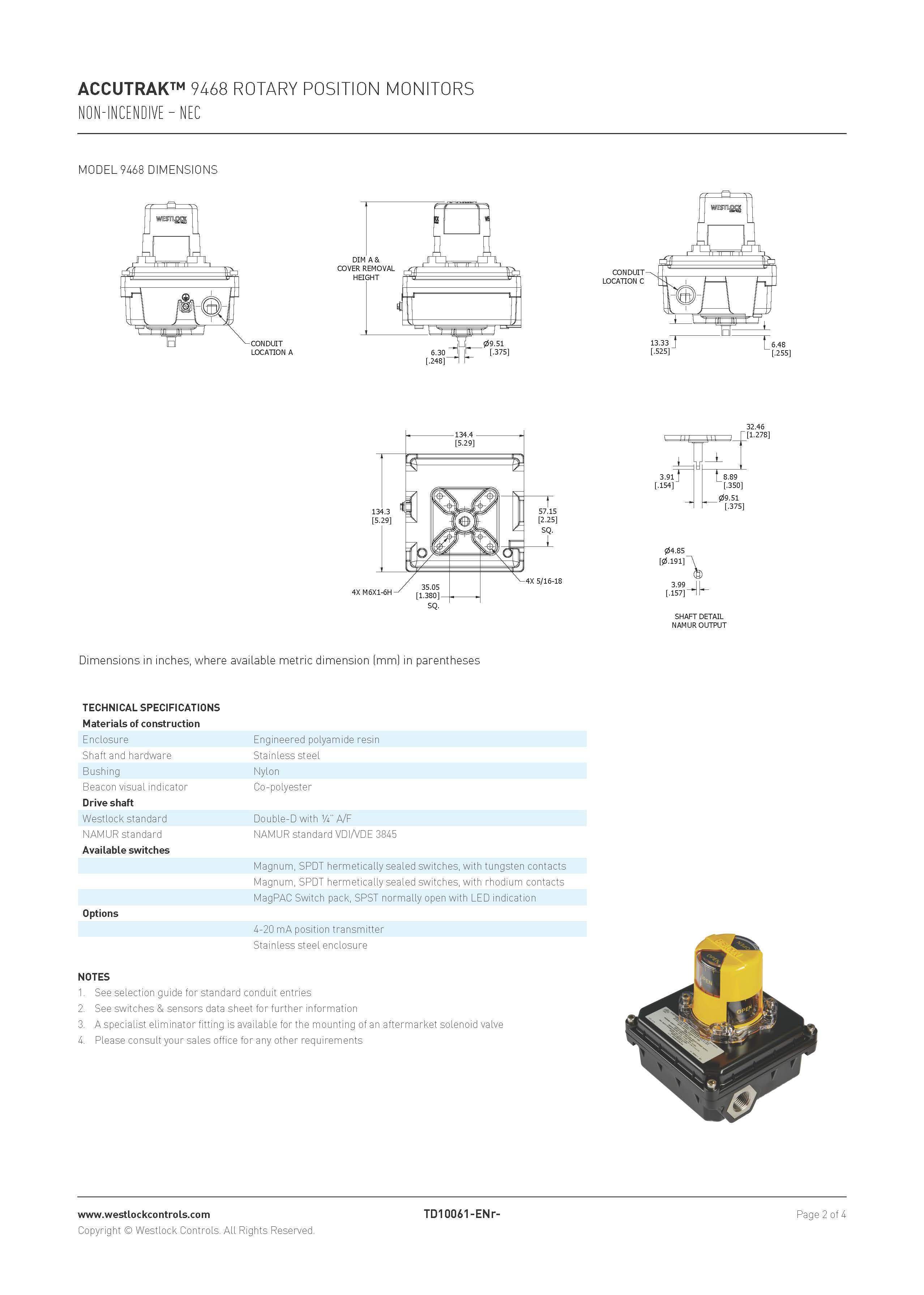

WESTLOCK POSITION MONITOR ACCUTRAK 9468

• Magnum switches with rhodium contacts for use with low power I/O’s for longer contact life.

• MagPAC bifurcated switch pack provides reliable action for low power and nonresistive loads.

• MagPAC LEDs provide clear status indication of limit switch and solenoid, where applicable.

• Strong durable BeaconTM offers 360° visual indication in a choice of styles and colors.

• Touch set cams are hand adjustable, spring loaded and self-locking providing quick

calibration of position switches and sensors.

• Terminal strips are pre-wired and numbered with generous working space for ease of use.

• Additional conduit for easy field wiring and mounting accessories as standard.

• 4-20 mA position transmitter option.

• Standardized mounting pattern for easy adaptation to common bracketry.

• Robust stainless steel conduit entry inserts provide protection from excessive torque and reliable grounding.

• NAMUR shaft output compliant to VDI / VDE 3845 available.

• Engineered resin enclosure is robust, lightweight and provides exceptional chemical, UV and impact resistance.

Applications

Ideal for manual and automated rotary valves
