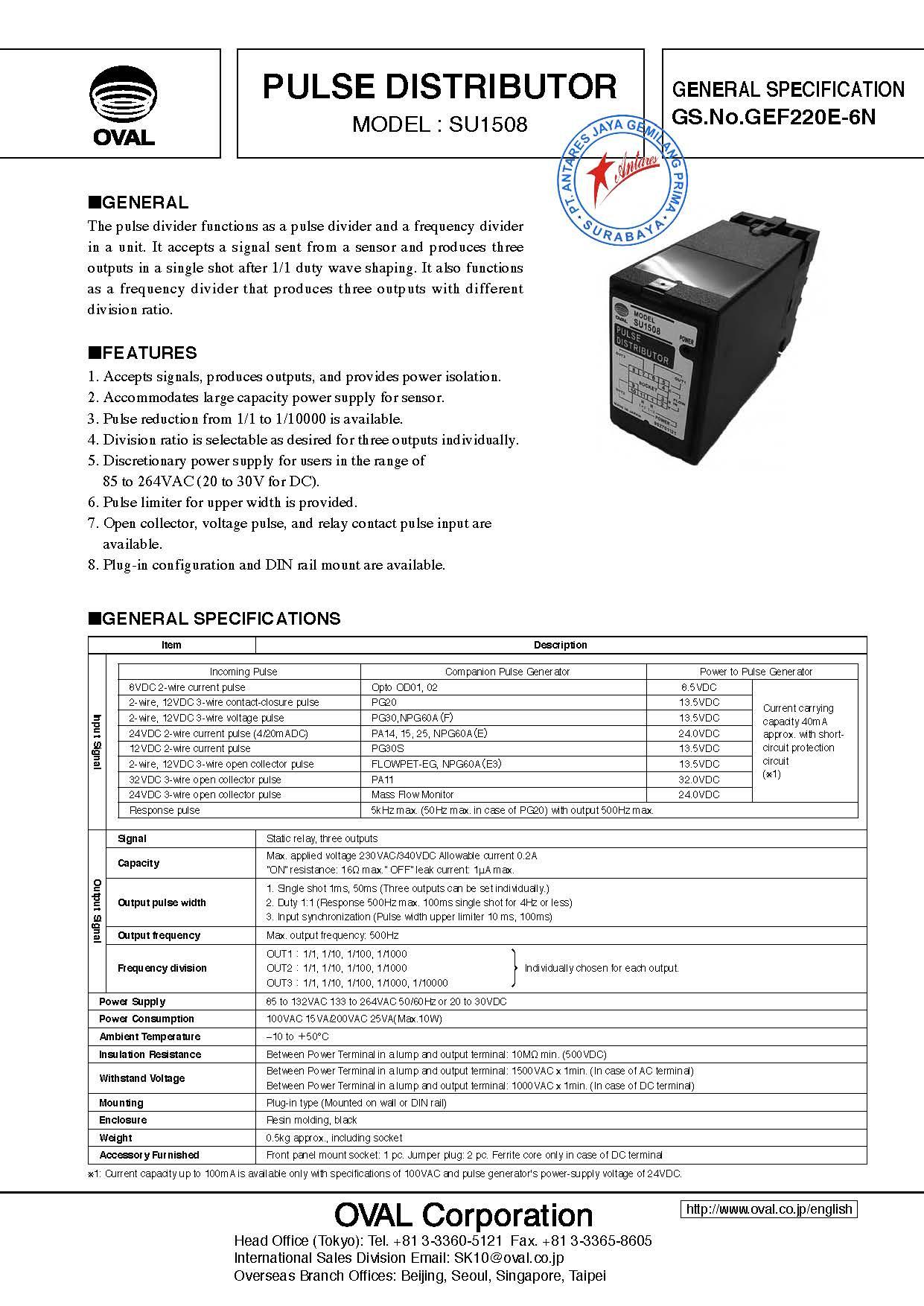

OVAL PULSE DISTRIBUTOR SU1508

• Accepts signals, produces outputs, and provides power isolation.

• Accommodates large capacity power supply for sensor.

• Pulse reduction from 1/1 to 1/10000 is available.

• Division ratio is selectable as desired for three outputs individually.

• Discretionary power supply for users in the range of 85 to 264VAC (20 to 30V forDC).

• Pulse limiter for upper width is provided.

• Open collector, voltage pulse, and relay contact pulse input are available.

• Plug-in configuration and DIN rail mount are available.
