OMRON PLC CQM1H-CPU51

Info lebih lanjut dapat menghubungi kami melalui :

Email : info@pt-antares.com

Whatsapp (WA) : 0851-8687-4041

Telepon : 031-855-4041

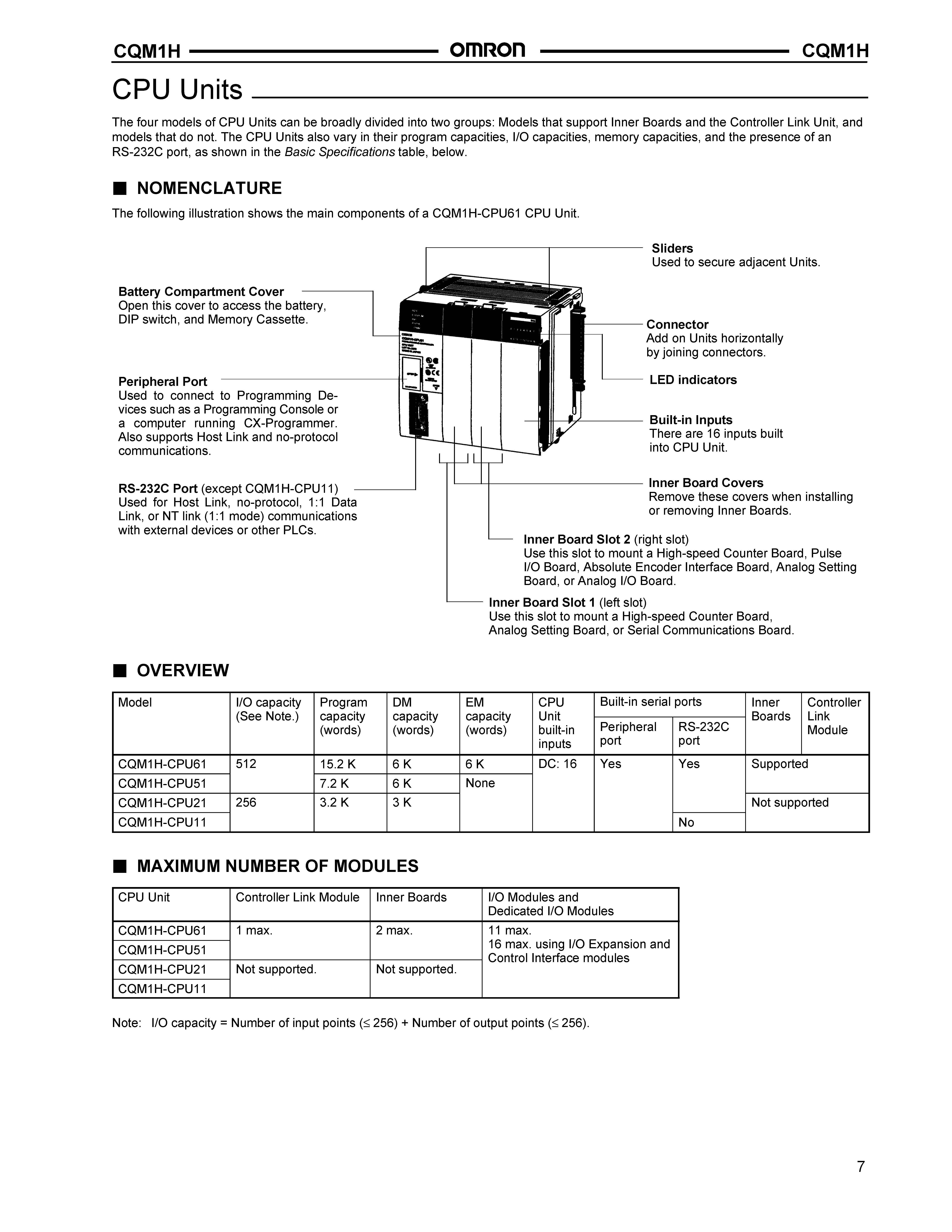

• Battery Compartment Cover

Open this cover to access the battery, DIP switch, and Memory Cassette.

• Peripheral Port

Used to connect to Programming De-vices such as a Programming Console or

a computer running CX-Programmer. Also supports Host Link and no-protocol communications.

• RS-232C Port (except CQM1H-CPU11)

Used for Host Link, no-protocol, 1:1 Data Link, or NT link (1:1 mode) communications with external devices or other PLCs.

• Sliders

Used to secure adjacent Units.

• Connector

Add on Units horizontally by joining connectors.

• LED indicators

• Built-in Inputs

There are 16 inputs built into CPU Unit.

• Inner Board Covers

Remove these covers when installing or removing Inner Boards.

• Inner Board Slot 2 (right slot)

Use this slot to mount a High-speed Counter Board, Pulse I/O Board, Absolute Encoder Interface Board, Analog Setting Board, or Analog I/O Board.

• Inner Board Slot 1 (left slot)

Use this slot to mount a High-speed Counter Board, Analog Setting Board, or Serial Communications Board.
