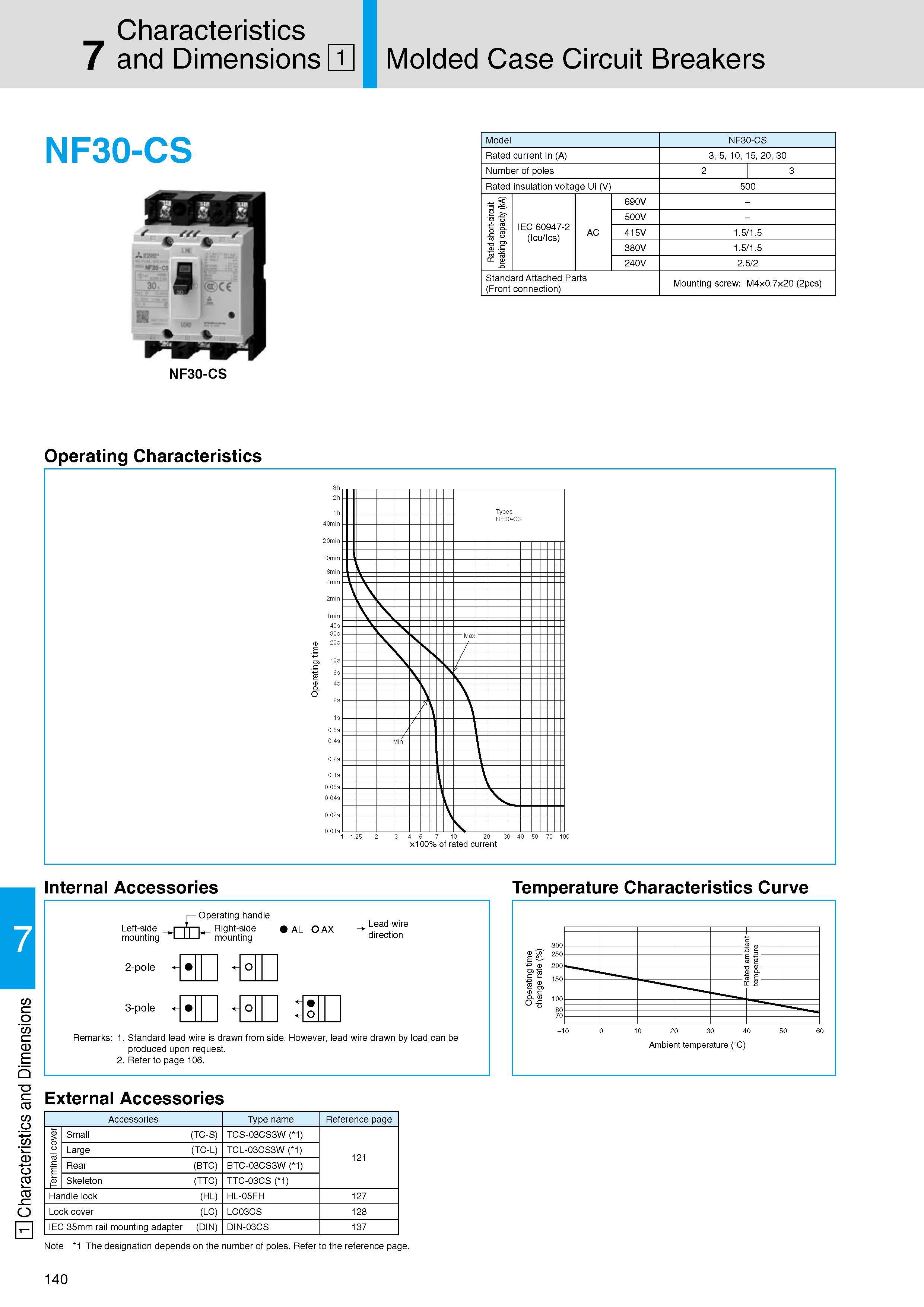

MITSUBISHI CIRCUIT BREAKER NF30-CS

1. The trip action characteristics differ between AC and DC for products that are compatible with both AC and DC

2. It is attached with the alarm switch

3. In case of a current rating of 100A, it does not specify NK rating

4. Use two poles for three- and four-pole products. In this case, do not use the neutral pole of the four-pole products. If wired as shown on the right, three and four poles can be used for up to 400 and 500VDC, respectively

5. The standard lead drawing is performed laterally. Load drawing is also available

6. The cassette type design makes it easy for customer to install. Available for installation on side below 250A frame (excluding UVT)

7. Use two poles for three- and four-pole products. In this case, do not use the neutral pole of the four-pole products. Not available for use with connection as shown on the right

8. Place an order of other models in conjunction with the circuit breaker

9. Solid state relay output is option. Please specify if other output is necessary. (Standard type is thus SLT equipped).

10. Not isolation compatible, excluding 400 to 800A frame
