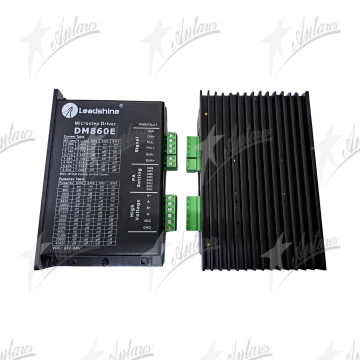

LEADSHINE INVERTER DM860E

Features :

• 2-phase digital stepper drives

• Anti-resonance for optimal torque, extra smooth motion, low motor heating and noise

• Motor auto-config on power up

• All drives support step and direction control, some models support CW/CCW as well

• Micro-stepping for smooth motor movement

• DIP switch configurable

• Wide range of input voltages supported (12-110 VDC, 18-80 VAC)

• Pulse input frequency up to 200kHz

• Soft-start with no “jump” when powered on

• Automatic idle-current reduction

• Protections for over-voltage and overcurrent

• NEMA 11, 14, 17, 23, 24, 34 and 42 frame size step motors supported
