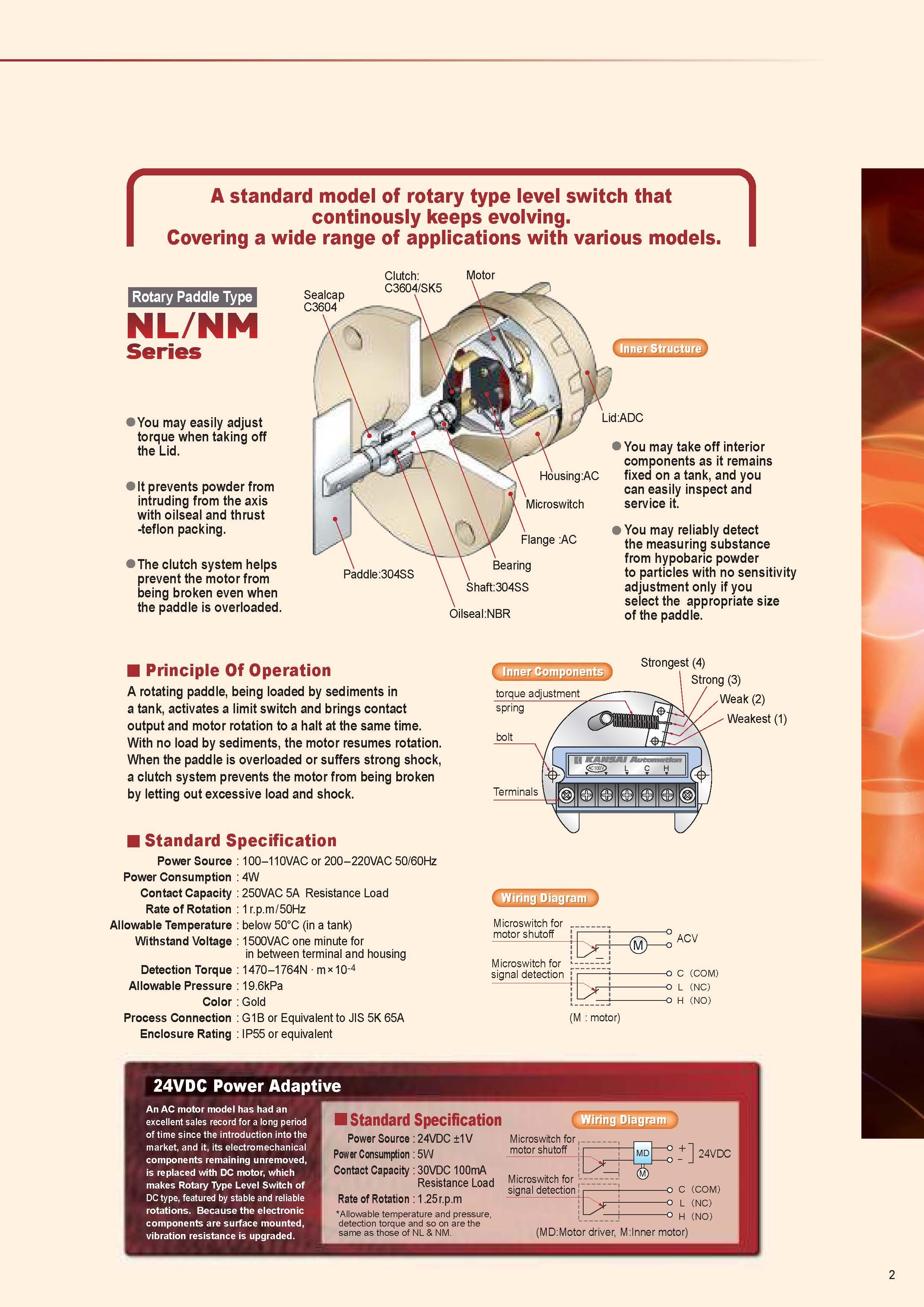

KANSAI LEVEL SWITCH NL-8BHA

A rotating paddle, being loaded by sediments in a tank, activates a limit switch and brings contact output and motor rotation to a halt at the same time. With no load by sediments, the motor resumes rotation. When the paddle is overloaded or suffers strong shock, a clutch system prevents the motor from being broken by letting out excessive load and shock.

Heat Resistant Type

●Operating temperature in a tank:250°C.

●Optional air or water cooled type can operate at the higher temperature

●Flange size: JIS5K65A equivalent

●Standard type for detecting powder, versatile usages

●Weight: about 4.4kg
