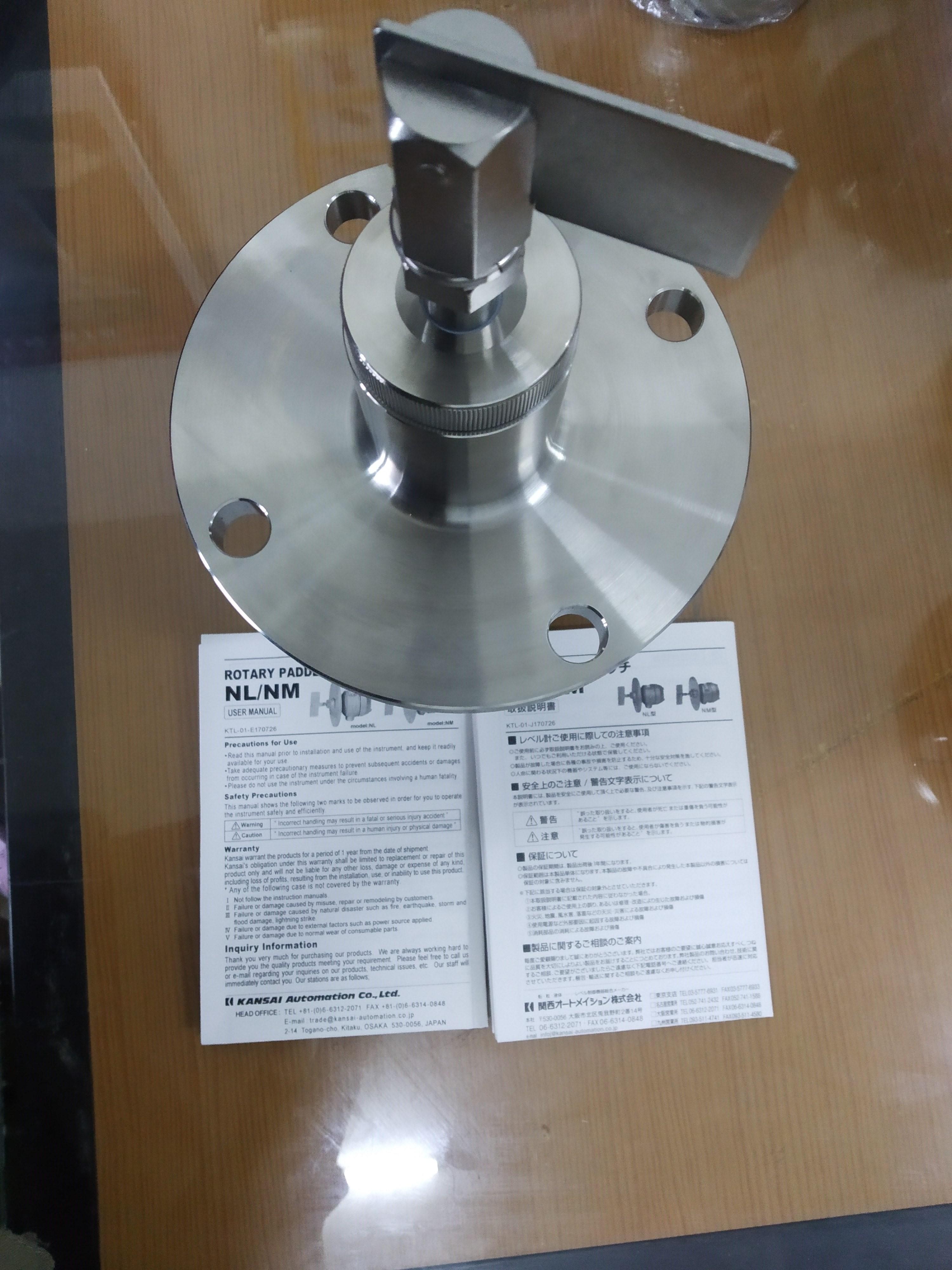

KANSAI LEVEL SWITCH NL-15B

A rotating paddle, being loaded by sediments in a tank, activates a limit switch and brings contact output and motor rotation to a halt at the same time.

With no load by sediments, the motor resumes rotation.

When the paddle is overloaded or suffers strong shock, a clutch system prevents the motor from being broken by letting out excessive load and shock.

●You may easily adjust torque when taking off the Lid.

●It prevents powder from intruding from the axis with oilseal and thrust-teflon packing.

●The clutch system helps prevent the motor from being broken even when the paddle is overloaded.

●You may take off interior components as it remains fixed on a tank, and you can easily inspect and service it.

●You may reliably detect the measuring substance from hypobaric powder to particles with no sensitivity adjustment only if you select the appropriate size of the paddle.

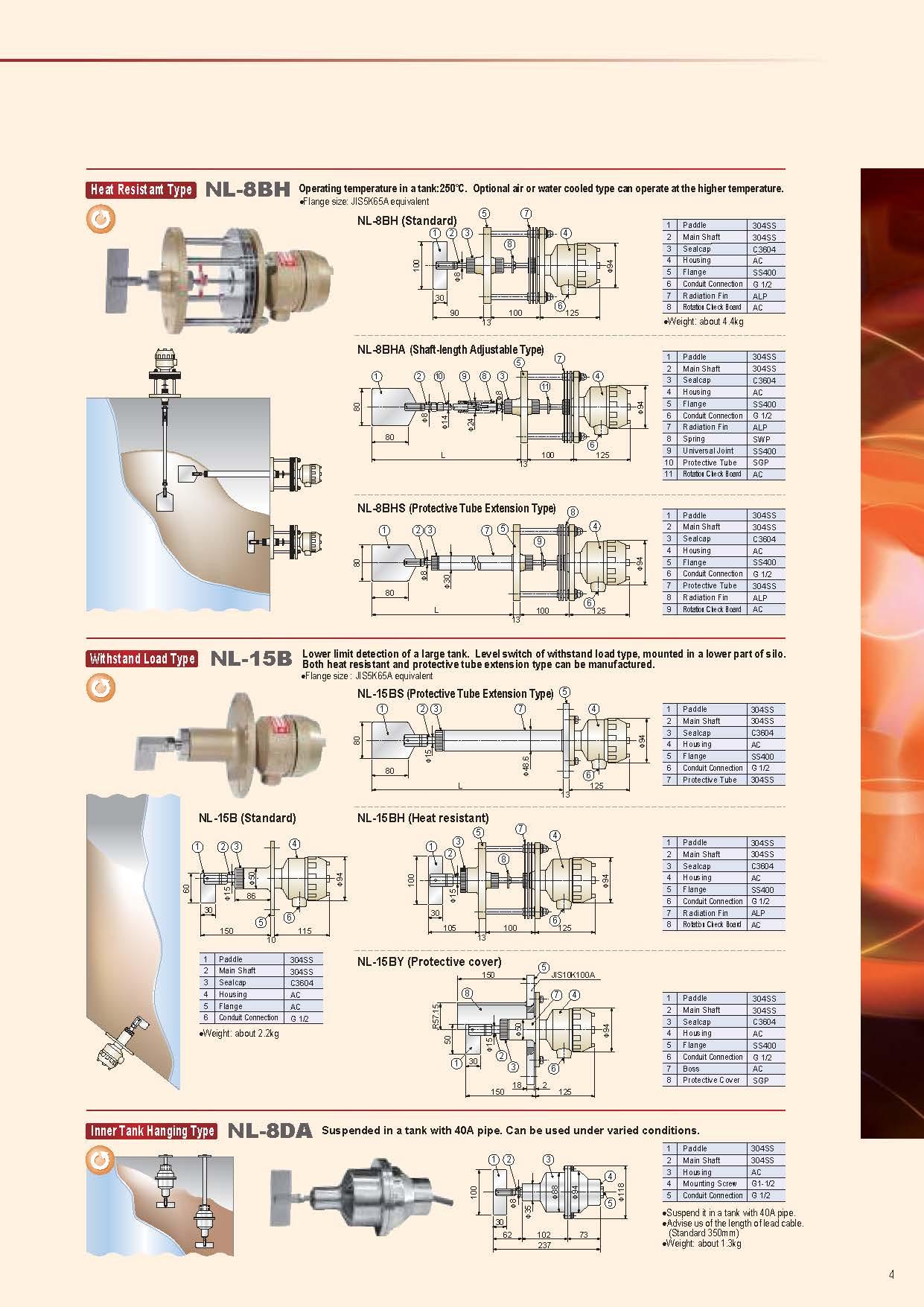

Withstand Load Type

●Lower limit detection of a large tank

●Level switch of withstand load type, mounted in a lower part of silo

●Both heat resistant and protective tube extension type can be manufactured

●Flange size : JIS5K65A equivalent

●Weight: about 2.2kg
