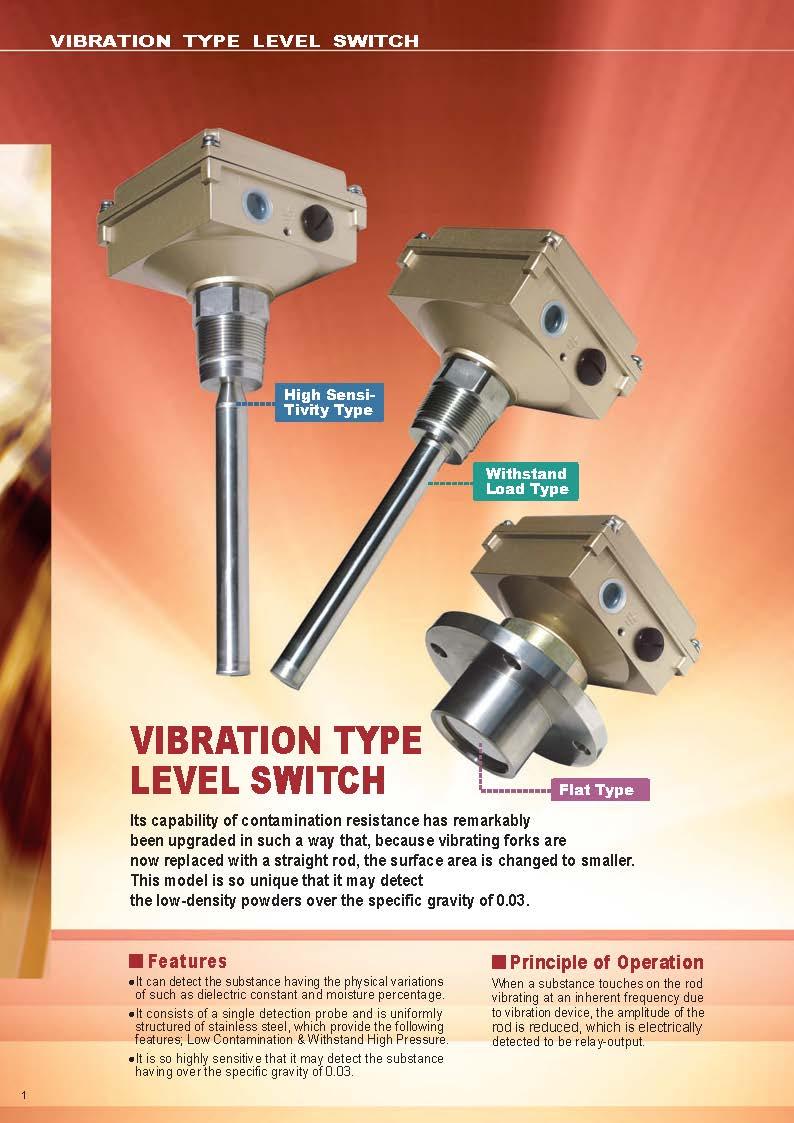

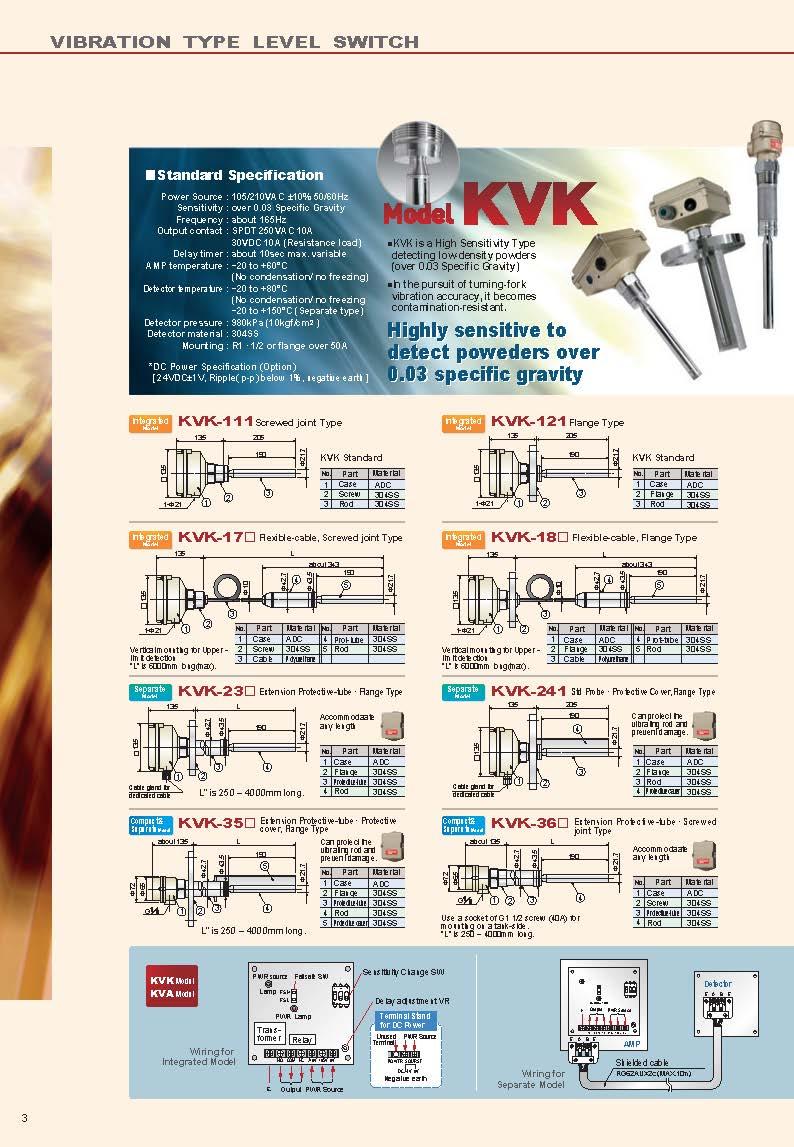

KANSAI LEVEL SWITCH KVK-111-T

Screwed Joint Type

●It can detect the substance having the physical variations of such as dielectric constant and moisture percentage.

●It consists of a single detection probe and is uniformly structured of stainless steel, which provide the following features; Low Contamination & Withstand High Pressure.

●KVK is a High Sensitivity Type detecting low-density powders (over 0.03 Specific Gravity)

●In the pursuit of turning-fork vibration accuracy, it becomes contamination-resistant.

Principle of Operation

When a substance touches on the rod vibrating at an inherent frequency due to vibration device, the amplitude of the rod is reduced, which is electrically detected to be relay-output.

Applications

Fine Powder/Granules, Submerged Solids, Powdered Coffee, Talc, Carbon, Foam

Polystyrene, Perlite, Flour, Powdered Milk, Pharmaceutical Powder, Toner, Colorant,

Pulverized Film Powder, etc.
