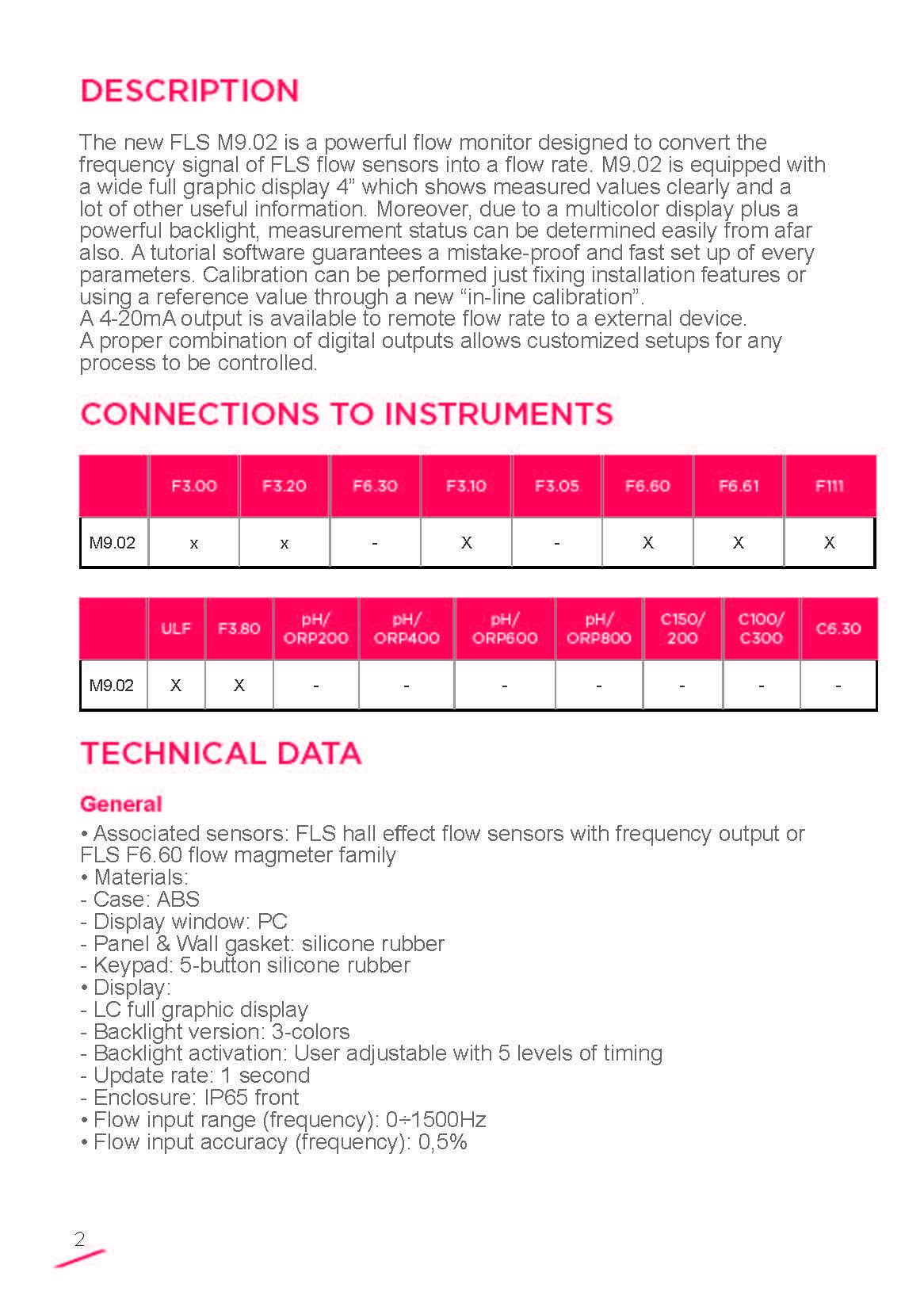

FIP FLS FLOW MONITOR AND TRANSMITTER M9.02 SERIES

• Associated sensors: FLS hall effect flow sensors with frequency output or FLS F6.60 flow magmeter family

• Materials:

- Case: ABS

- Display window: PC

- Panel & Wall gasket: silicone rubber

- Keypad: 5-button silicone rubber

• Display:

- LC full graphic display

- Backlight version: 3-colors

- Backlight activation: User adjustable with 5 levels of timing

- Update rate: 1 second

- Enclosure: IP65 front

• Flow input range (frequency): 0÷1500Hz

• Flow input accuracy (frequency): 0,5%
