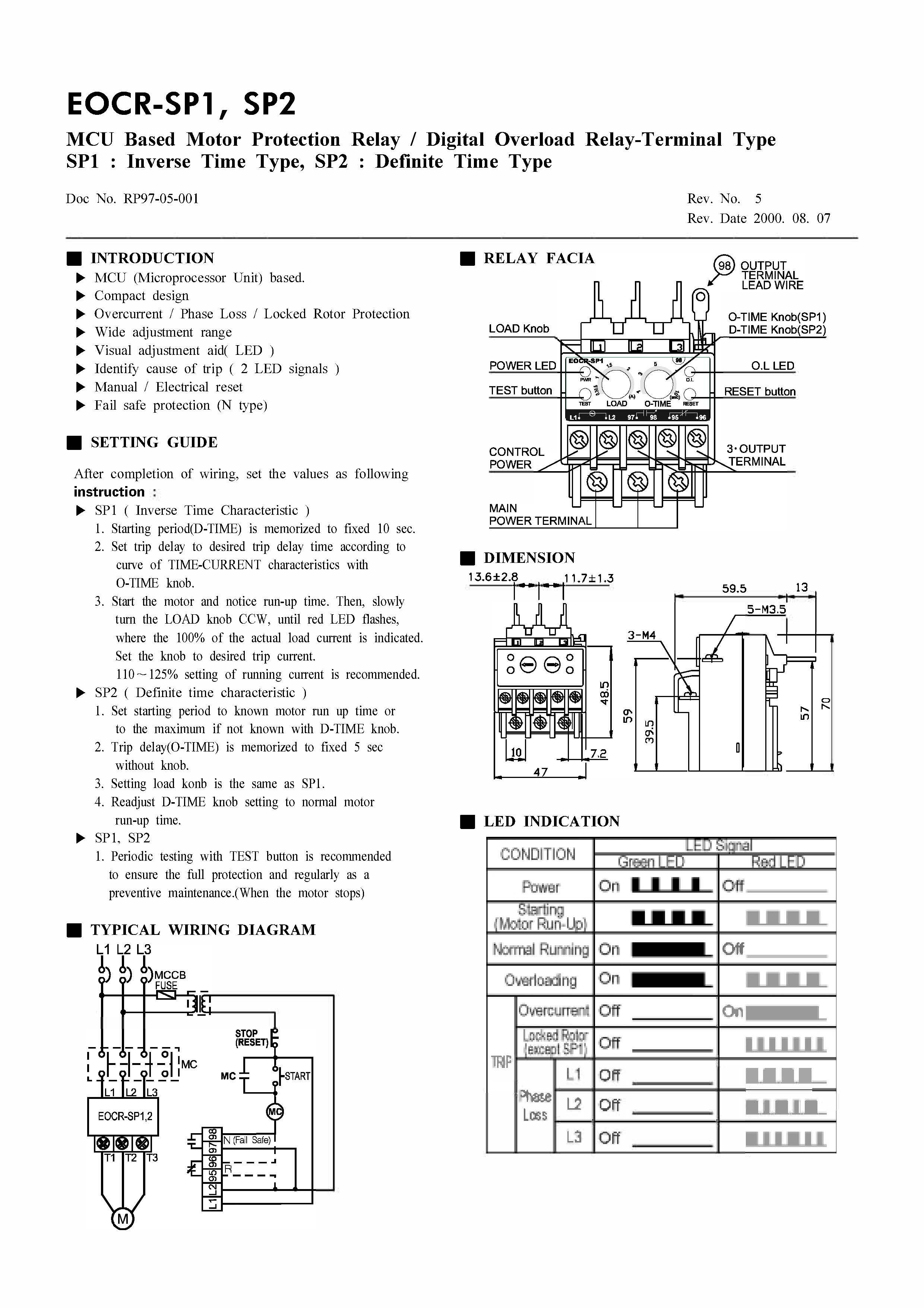

EOCR SP1-10 N

• MCU (Microprocessor Unit) based.

• Compact design

• Overcurrent / Phase Loss / Locked Rotor Protection

• Wide adjustment range

• Visual adjustment aid (LED)

• Identify cause of trip (2 LED signals)

• Manual / Electrical reset

• Fail safe protection (N type)

• Fits Directly into IEC or NEMA Contactor

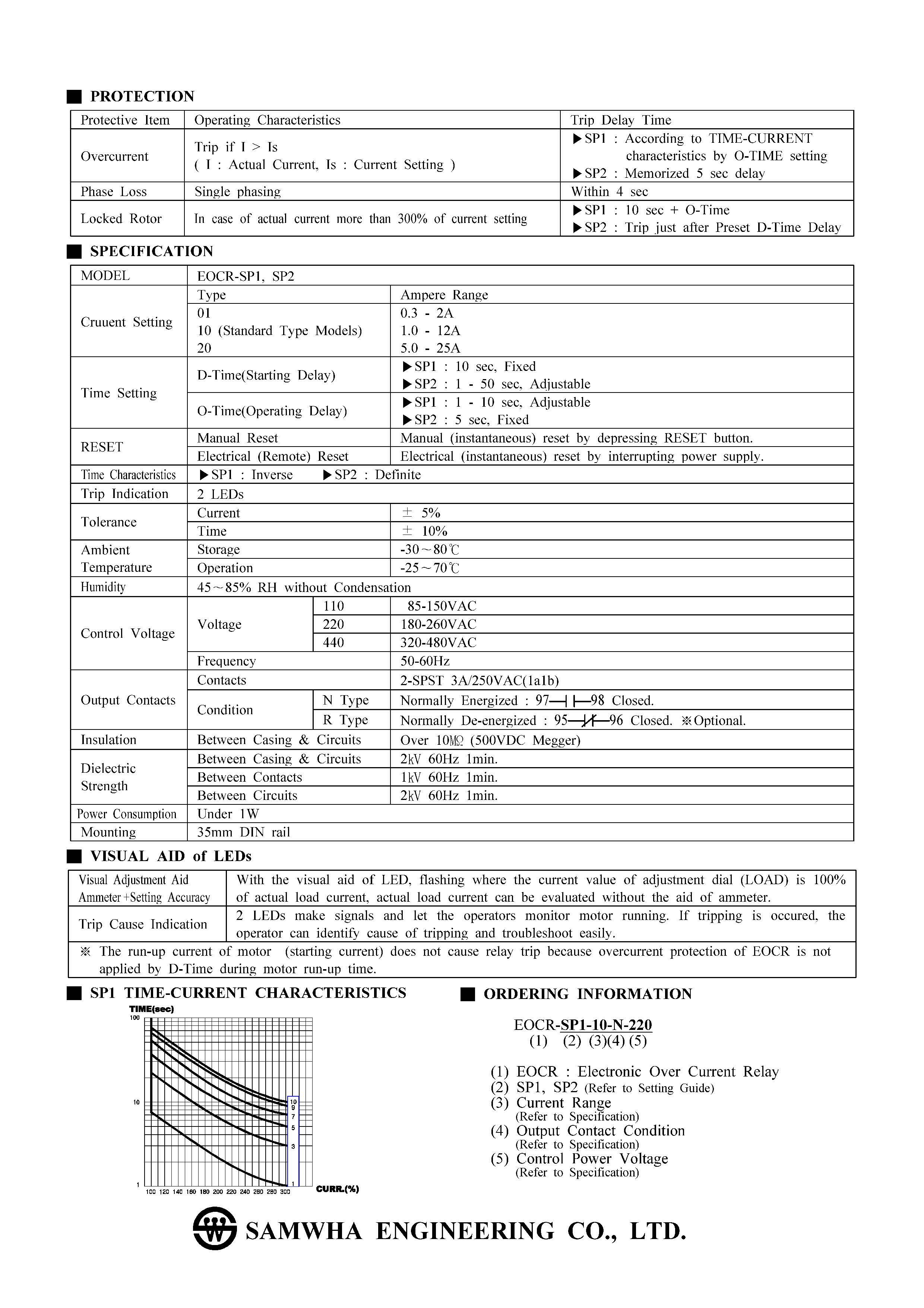

Current Range : 1-10/12A

Power Supply : 180-260VAC 50/60Hz

Phase loss within 4 second

Starting delay 10 second (fixed)

Operating time 1-10 second (inverse)
