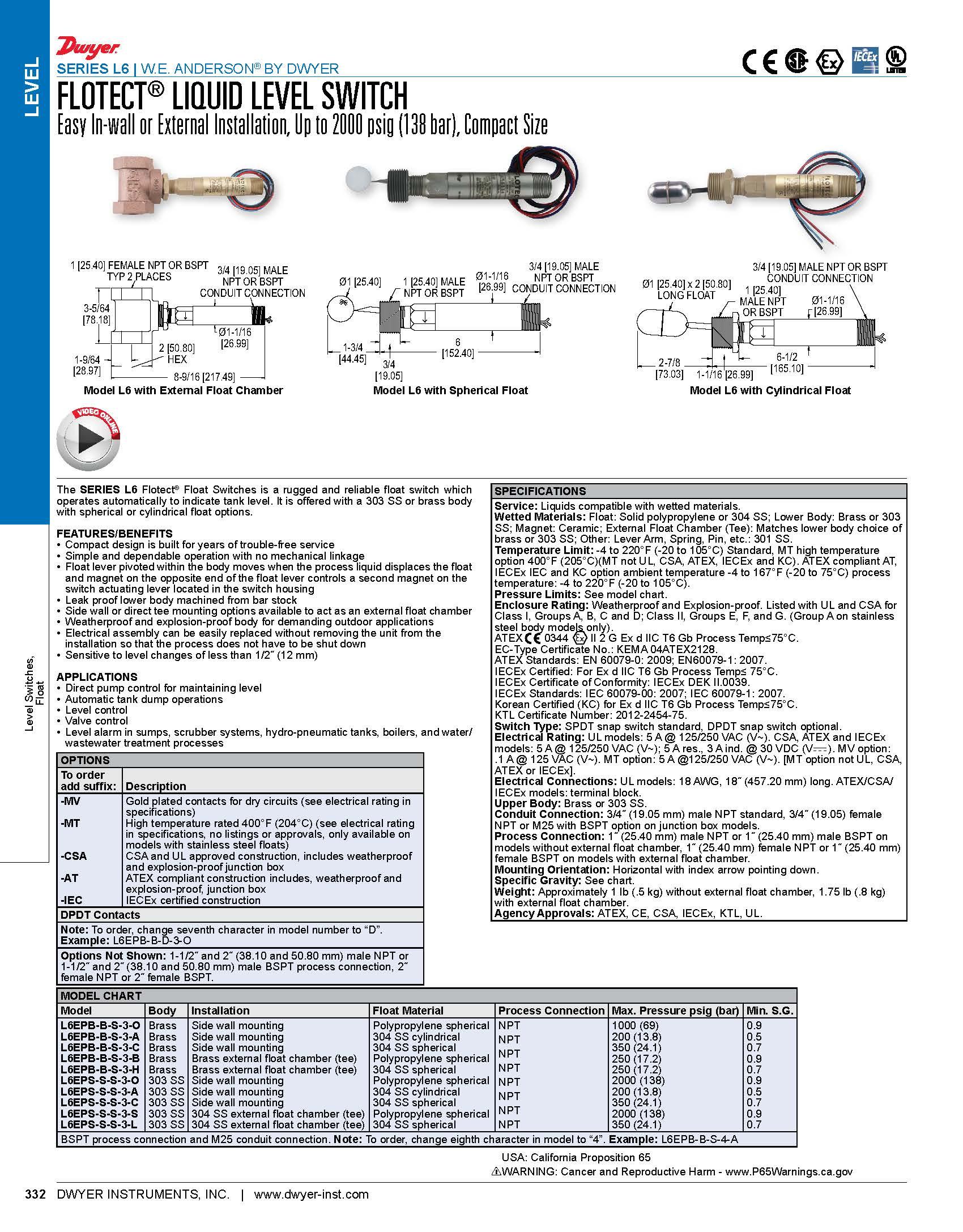

DWYER FLOTECT LEVEL SWITCH L6EPS-S-S-3-S

• Compact design is built for years of trouble-free service

• Simple and dependable operation with no mechanical linkage

• Float lever pivoted within the body moves when the process liquid displaces the float

and magnet on the opposite end of the float lever controls a second magnet on the

switch actuating lever located in the switch housing

• Leak proof lower body machined from bar stock

• Side wall or direct tee mounting options available to act as an external float chamber

• Weatherproof and explosion-proof body for demanding outdoor applications

• Electrical assembly can be easily replaced without removing the unit from the

installation so that the process does not have to be shut down

• Sensitive to level changes of less than 1/2˝ (12 mm)

Applications

• Direct pump control for maintaining level

• Automatic tank dump operations

• Level control

• Valve control

• Level alarm in sumps, scrubber systems, hydro-pneumatic tanks, boilers, and water/

wastewater treatment processes
