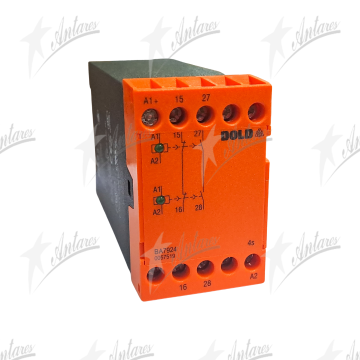

DOLD MODULE BA7924.21/002

• According to EC Directive for machines 98/37/EG

• According to IEC/EN 61 812-1, IEC/EN 60 204-1

• Release delay

• Optionally with redundant timing circuit

• Without auxiliary voltage

• Output: 1 NC, 1 NO contacts, positively-driven

• Optionally with adjustable or fixed time delay up to 30 s

• Optionally with 1 or 2 separate timing circuits

• Optionally also in housing for distribution board

• Operating state display

• Width 45 mm, 35 mm or 52,5 mm

Application

Delayed switch-off in safety-oriented controls
