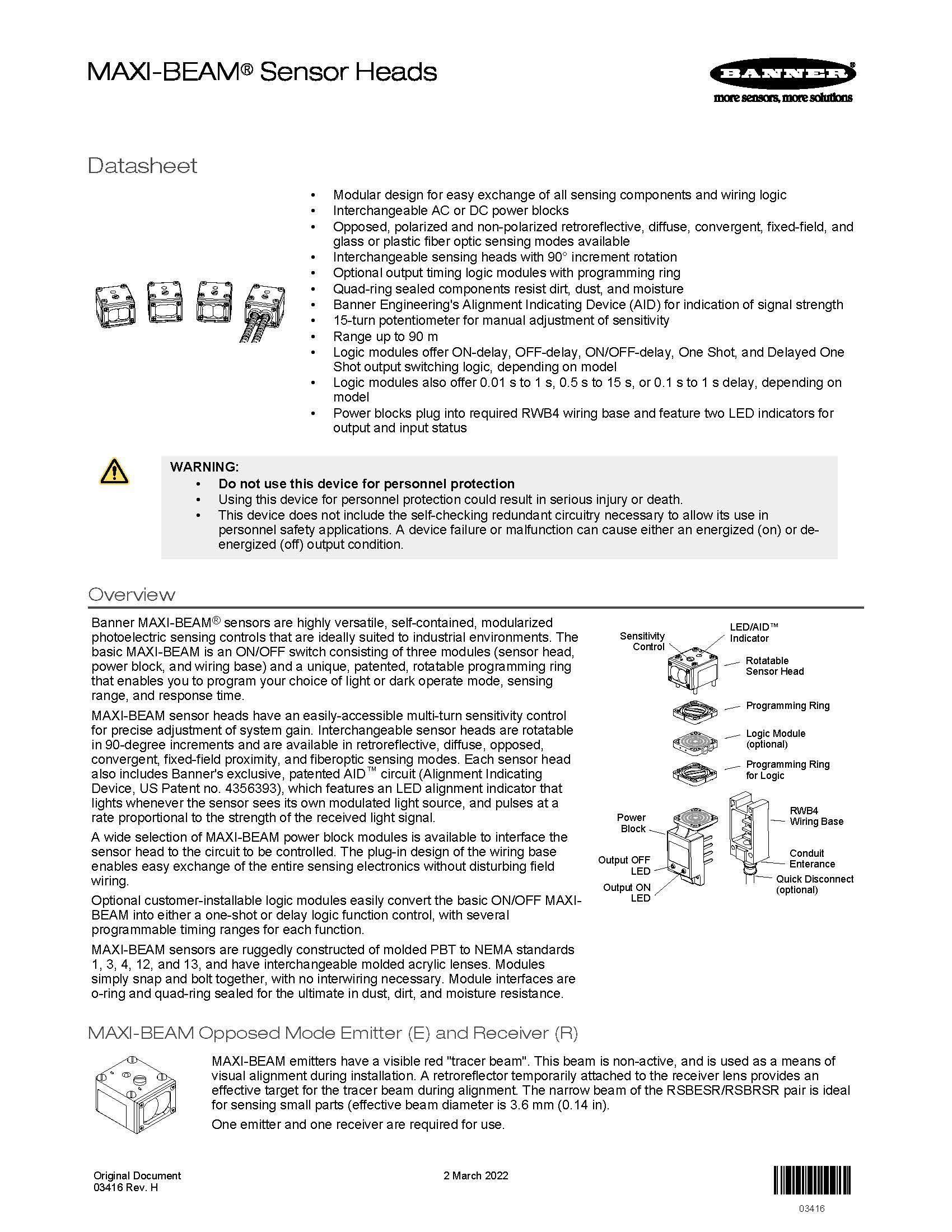

BANNER SENSOR RSBR

• Modular design for easy exchange of all sensing components and wiring logic

• Interchangeable AC or DC power blocks

• Opposed, polarized and non-polarized retroreflective, diffuse, convergent, fixed-field, and glass or plastic fiber optic sensing modes available

• Interchangeable sensing heads with 90° increment rotation

• Optional output timing logic modules with programming ring

• Quad-ring sealed components resist dirt, dust, and moisture

• Banner Engineering's Alignment Indicating Device (AID) for indication of signal strength

• 15-turn potentiometer for manual adjustment of sensitivity

• Range up to 90 m

• Logic modules offer ON-delay, OFF-delay, ON/OFF-delay, One Shot, and Delayed One Shot output switching logic, depending on model

• Logic modules also offer 0.01 s to 1 s, 0.5 s to 15 s, or 0.1 s to 1 s delay, depending on model

• Power blocks plug into required RWB4 wiring base and feature two LED indicators for

output and input status
