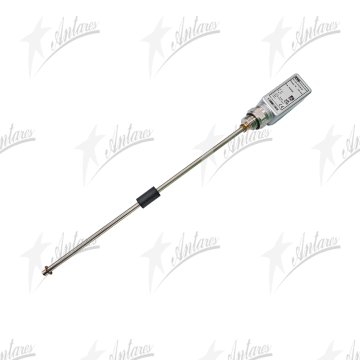

PARKER LEVEL SWITCH SCLSD-370-00-07

The LevelController combines the functions of a level switch, a level sensor and a level display.

• Level display (inspection glass)

• Switching outputs

• Analogue signal

The LevelController is ideal for the monitoring tank contents.

Easy to use

The parameters are set using the keys or over a programming

module.

High functionality

Each switching output can be adjusted individually:

• NO/NC contact

• Upper and lower level switching point

• Delay times

• Hysteresis / window function

• Attenuation

The analogue output is individually adjustable:

• 0/4...20 mA switchable

• Upper level adjustable

• Lower level adjustable

The position of the float is finely (≥ 5 mm) and continuously recorded and shown in the display in mm or inch. Parameters can be password protected to avoid unauthorised changes.

The display can be read from long distances using the selectable percent display. An offset can also be entered (difference from the sensor to the tank bottom) to give a realistic indication of the level from the tank bottom. Different uses can easily be implemented or corrected at a later date using the menu-driven level switching points.

As the switching point no longer needs to be specified at the time of order, the versions of mechanical level switches required is reduced.

Intelligent adjustments can be set which are normally not possible using a mechanical

level switch. With the optional analogue output, the level and temperature can be monitored easily with a controller (e.g. for leakage monitoring).
