SCHNEIDER ELECTRIC

EOCR SSD-60S

Stock : 14 Item

Price : IDR 0.0000

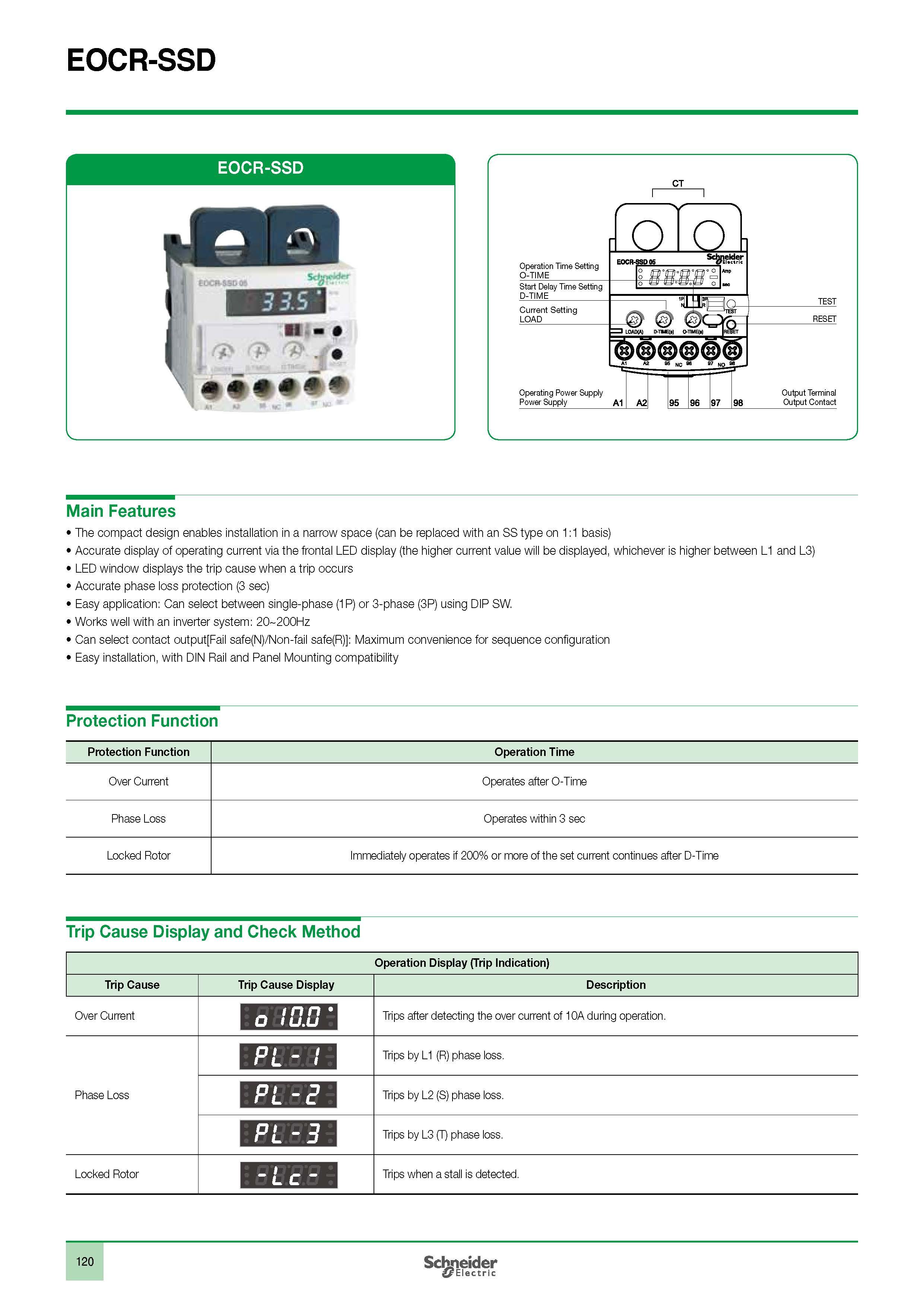

• The compact design enables installation in a narrow space (can be replaced with an SS type on 1:1 basis)

• Accurate display of operating current via the frontal LED display (the higher current value will be displayed, whichever is higher between L1 and L3)

• LED window displays the trip cause when a trip occurs

• Accurate phase loss protection (3 sec)

• Easy application: Can select between single-phase (1P) or 3-phase (3P) using DIP SW.

• Works well with an inverter system: 20~200Hz

• Can select contact output[Fail safe(N)/Non-fail safe(R)]: Maximum convenience for sequence configuration

• Easy installation, with DIN Rail and Panel Mounting compatibility

Range
5 - 60 Ampere
Protection
Over Current Protection, Phase Loss Protection, Lock Rotor Protection.
