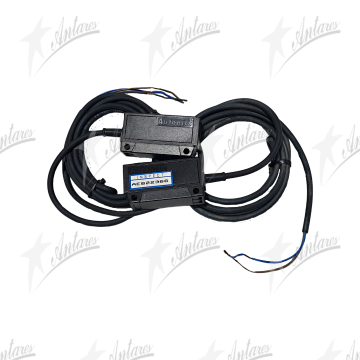

AUTONICS PHOTOELECTRIC SENSOR BM3M-TDT1,2

● Easy to mount at a narrow space with small size and light weight.

● Convenient to adjust the sensitivity by external sensitivity adjustment control. (diffuse reflective type only)

● Easy to mount by screw type in mounting hole.

● Built-in reverse polarity protection circuit.

● Tipe deteksi : Tipe Through-beam

● Jarak deteksi : 3m

● Objek deteksi : Material tidak transparan min. Ø8mm

● Sumber cahaya : LED inframerah (940 nm)

● Waktu respon : maks. 3ms

● Catu daya : 12-24VDC  ±10%(ripple P-P: maks. 10%)

● Mode operasi : Dark ON

● Output kontrol : NPN open collector
